Procedure to find out the BADI definition and Implementation of BADI

Requirements



Transaction Code	XD01
BADI Definition	CUSTOMER_ADD_DATA
Method 1 to be Implemented	CHECK_ALL_DATA
Functionality to be Implemented	Download the Customer data
Method 2 to be Implemented	PRESET_VALUES_CCODE
Functionality to be Implemented	Set default values for Company code

To find out the package.

• Go to transaction code XD02.

• Enter the Customer Id and click on continue,

• Screen looks like,

• Click on System -> Status.

• Pop-up will appear.

• Double Click on Program name.

• Screen look like,

• Click on Goto -> Properties.

• Pop-up will appear.

• Copy the Package name.

To find out BADI defination

• Go to Transaction Code SE18.

• Initial screen looks like,

• Select BAdi name radio button.

• Click on F4 help.

• Pop-up will appear .
• Click on Information System.

• Pop-up will appear.

• Enter the package name and click on execute.

• In pop-up BADI definition will appear.

• Double click on BADI definition.

• Click on Display.

• Screen look like this,

• Click on interface tab , to find out the methods.

• Copy the BADI Definition name.

Implementation of BADI

• Go to Transaction Code SE19.

• Initial screen looks like,

• Click on Classical BADI.

• Automatically BADI definition will pull's up.
• Click on Create Impl. Button.

• Pop-up will appear.

• Enter the Implementation name start's with Y or Z< implementation BADI name> and click on continue button.

•  Screen looks like,

•  Enter the Implementation short text.



• Click on Interface Tab.

• Automatically , Class will be created.

• Click on Save button.
• Save it either in Local Package or Package.

•  Double click on Class name.

• Pop-up will appear.



• Click on Yes.
• One more pop-up will Appear.

• Click on continue.
• One more pop-up will appear.

• Either Select the existing Enhancement Implementation or Create the new  Enhancement Implementation .
• To Create the new  Enhancement Implementation , Click on Create new  Enhancement Implementation Button .

• Pop-up will appear.

• Enter the Enhancement Implementation name start's with Y or Z.
• Enter the short description.

• Click on continue.
• Assign the Package.

• Select the Enhancement Implementation name and click on continue.

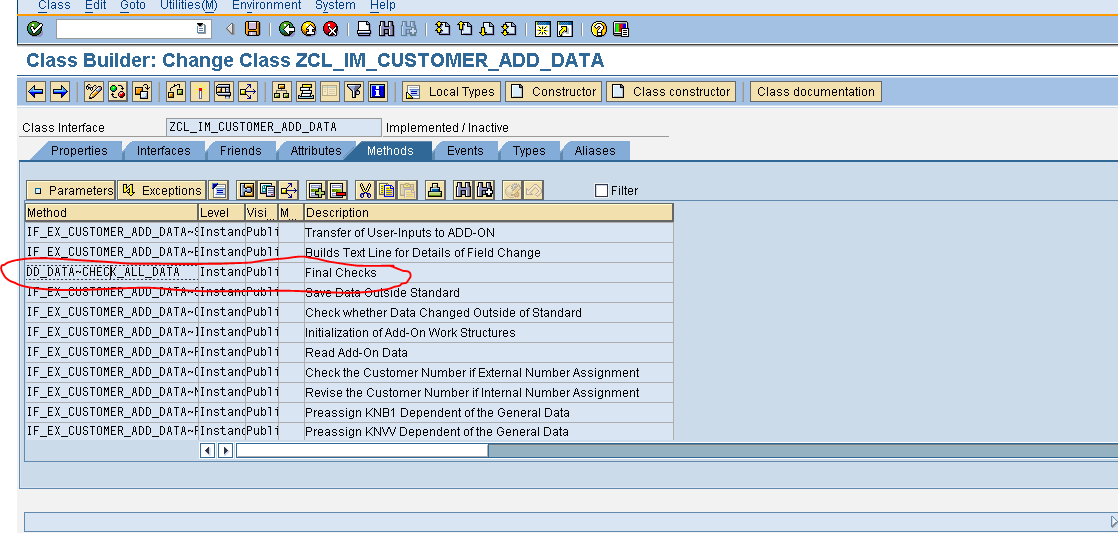

• Class Builder Looks like,

• Select the Required methods.

• To view method Documentation.
• Select the required method and click on Goto ->Documentation ->To component.

• Documentation help will appear.

• Double click on required method name.

• Screen looks like,

• Enter the Logic.

method IF_EX_CUSTOMER_ADD_DATA~CHECK_ALL_DATA.

  TYPES : BEGIN OF TY_KNA1,

         KUNNR TYPE KNA1-KUNNR,

         KTOKD TYPE KNA1-KTOKD,

         NAME1 TYPE KNA1-NAME1,

         ORT01 TYPE KNA1-ORT01,

         LAND1 TYPE KNA1-LAND1,

        END OF TY_KNA1.

  DATA : WA_KNA1  TYPE TY_KNA1,

         IT_KNA1 TYPE TABLE OF TY_KNA1.

  DATA : FILENAME TYPE  STRING.

  CLEAR WA_KNA1.

  WA_KNA1-KUNNR = S_KNA1-KUNNR.

  WA_KNA1-KTOKD = S_KNA1-KTOKD.

  WA_KNA1-NAME1 = S_KNA1-NAME1.

  WA_KNA1-ORT01 = S_KNA1-ORT01.

  WA_KNA1-LAND1 = S_KNA1-LAND1.

  APPEND WA_KNA1 TO IT_KNA1.

  CALL FUNCTION 'GUI_FILE_SAVE_DIALOG'

   EXPORTING

     WINDOW_TITLE            = 'Select the file save location'

     DEFAULT_EXTENSION       = 'DOC'

*     DEFAULT_FILE_NAME       =

*     WITH_ENCODING           =

*     FILE_FILTER             =

*     INITIAL_DIRECTORY       =

   IMPORTING

     FILENAME                = FILENAME

*     PATH                    =

*     FULLPATH                =

*     USER_ACTION             =

*     FILE_ENCODING           =

            .

CALL FUNCTION 'GUI_DOWNLOAD'

  EXPORTING

*   BIN_FILESIZE                    =

    FILENAME                        = FILENAME

   FILETYPE                        = 'ASC'

*   APPEND                          = ' '

*   WRITE_FIELD_SEPARATOR           = ' '

*   HEADER                          = '00'

*   TRUNC_TRAILING_BLANKS           = ' '

*   WRITE_LF                        = 'X'

*   COL_SELECT                      = ' '

*   COL_SELECT_MASK                 = ' '

*   DAT_MODE                        = ' '

*   CONFIRM_OVERWRITE               = ' '

*   NO_AUTH_CHECK                   = ' '

*   CODEPAGE                        = ' '

*   IGNORE_CERR                     = ABAP_TRUE

*   REPLACEMENT                     = '#'

*   WRITE_BOM                       = ' '

*   TRUNC_TRAILING_BLANKS_EOL       = 'X'

*   WK1_N_FORMAT                    = ' '

*   WK1_N_SIZE                      = ' '

*   WK1_T_FORMAT                    = ' '

*   WK1_T_SIZE                      = ' '

* IMPORTING

*   FILELENGTH                      =

  TABLES

    DATA_TAB                        = IT_KNA1

*   FIELDNAMES                      =

 EXCEPTIONS

   FILE_WRITE_ERROR                = 1

   NO_BATCH                        = 2

   GUI_REFUSE_FILETRANSFER         = 3

   INVALID_TYPE                    = 4

   NO_AUTHORITY                    = 5

   UNKNOWN_ERROR                   = 6

   HEADER_NOT_ALLOWED              = 7

   SEPARATOR_NOT_ALLOWED           = 8

   FILESIZE_NOT_ALLOWED            = 9

   HEADER_TOO_LONG                 = 10

   DP_ERROR_CREATE                 = 11

   DP_ERROR_SEND                   = 12

   DP_ERROR_WRITE                  = 13

   UNKNOWN_DP_ERROR                = 14

   ACCESS_DENIED                   = 15

   DP_OUT_OF_MEMORY                = 16

   DISK_FULL                       = 17

   DP_TIMEOUT                      = 18

   FILE_NOT_FOUND                  = 19

   DATAPROVIDER_EXCEPTION          = 20

   CONTROL_FLUSH_ERROR             = 21

   OTHERS                          = 22

          .

IF SY-SUBRC <> 0.

 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

         WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

ENDIF.

endmethod.

• Save ->Check ->Activate.

• Click on Back button.
• To implement the second method.
• Select the method.

• For method documentation.
• Goto -> Documentation -> To Component.

• Go through on Documentation.

• Go back, Double click on method.

• Implement the method.

method IF_EX_CUSTOMER_ADD_DATA~PRESET_VALUES_CCODE.



  E_KNB1-AKONT = '14000'.

  E_KNB1-ZTERM = 'ZB01'.

endmethod.

• Save -> Check -> Activate.

• Activate the Class.

• Click on back button.

• Save ->Check -> Activate.

Test Enhancement.

• Go to transaction code : XD01.

• Screen looks like,

• Select Account Group as : Bill-to-party.
• Customer number.
• Company code and press Enter.

• Select the Title.
• Name and search term and press  ENTER,

• Click on Company Code data.

• Notice the Default value AKONT.

• Click on payment Transaction.

• Notice the Default value ZB01.

• Click on Save.

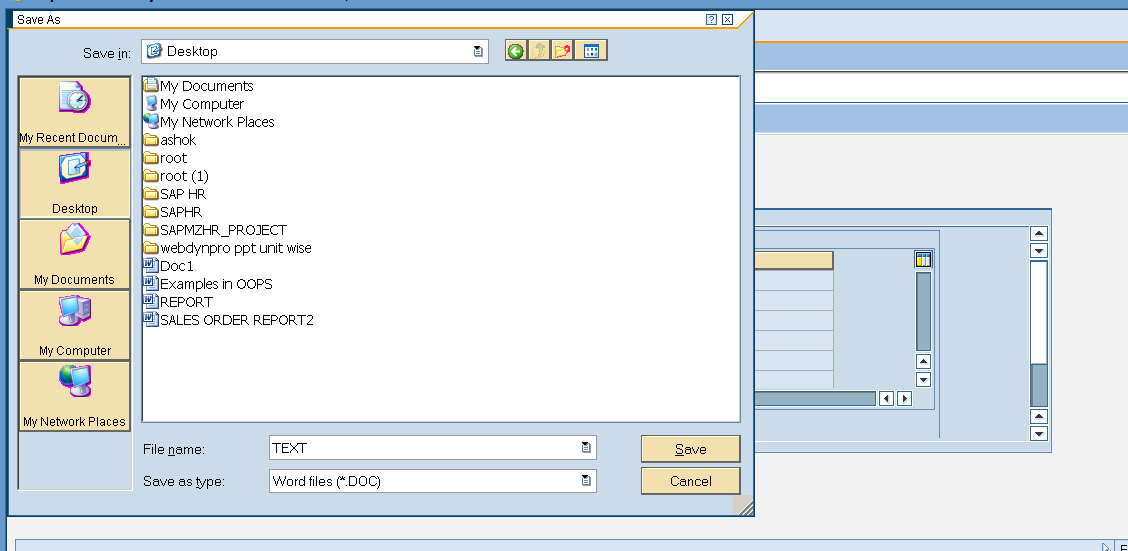

• Pop-up will appear ( Customized ).

• Select the path and enter the file name.
• Click on Save.

• Click on Generate.

• Check the status bar.

• Go to file saved path.

• Open file.
